VERY IMPORTANT

When you start to use the camera detector,the RF sensitivity dial need be set up right to fit your signal surroundings high sensitivity setting will cause the camera detector STAYING on buzzing/vibration or lighting on.

How to set up the RIGHT rf sensitivity for the FIRST TIME use.

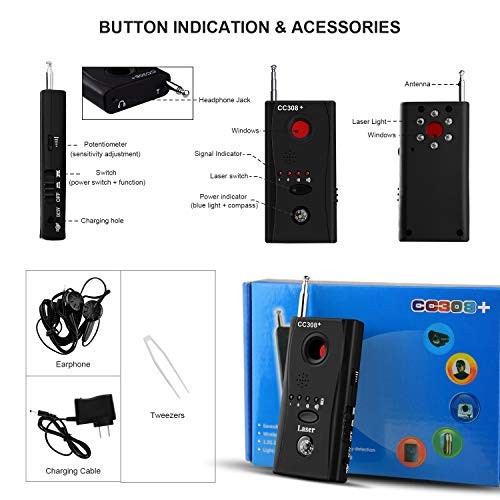

1 RF sensitivity dial is on the top right side.

2ion the sensitivity dial to maximum,the camera detector will keep four front lights lighting up with buzzing/vibration start gradually lower the sensitivity and stop adjusting when there only one light is ON from the left is a right set up to fit your signal surrondings.

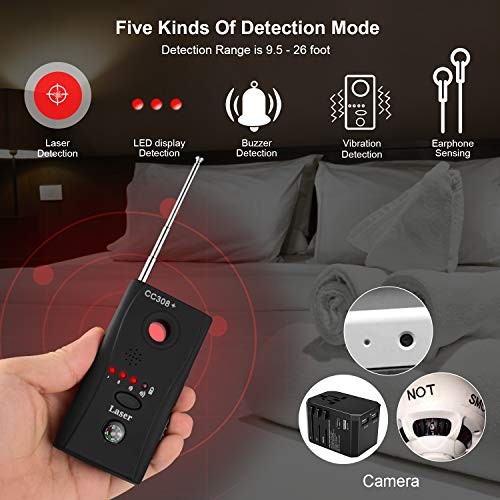

Detecting Camera Lens

1) Turn the power switch to the middle(Buzzer Mode) or top (Vibration Mode).

2) Press the button in the front, 6 lights in the rear begin to blink the continuous press and hold the switch, light flashed every 2s, faster frequency of a level.

3) Looking through the red window,move the window up and down and side to side until you have scan the area you wish to search a hidden camera is located you will see a very strong bright spot through red window.

Detecting Radio Frequency

The buzzer/vibration switch button is on the bottom right side.

1) Turn the power switch to middle(Buzzer Mode) or top (Vibration Mode).

2) Pull up antena to extend itk the sensivity dial as a right position.

2) Move around and scan the place front light will light up if any RF signals are detected more lights that are lit up means the stronger signal are detected, and the buzzer/vibration will get bigger.

4) Gradually shorten the antenna, adjust the sensivity dial reversely to reduce the detecting range and locate the signal.

5) You can use headset or compass for assistance.(Included in the box)
