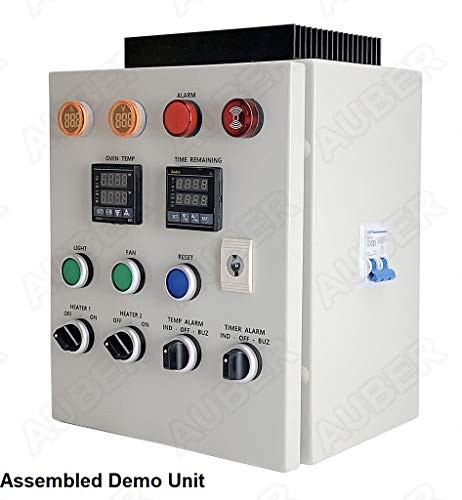

Assembled panel is also available: amzn/B07KCNLN22

This is our 50A kit to DIY a control panel for powder coating oven (approx. 4'x4'x6' size or 100 cubic feet) supporting light and fan feature. The circuit is designed for US split-phase 240V oven with up to 12,000W heater load (for example, 4 x 3000W heating elements). It has a PID controller and independent timer. Wiring diagram and other installation files are available after purchase.

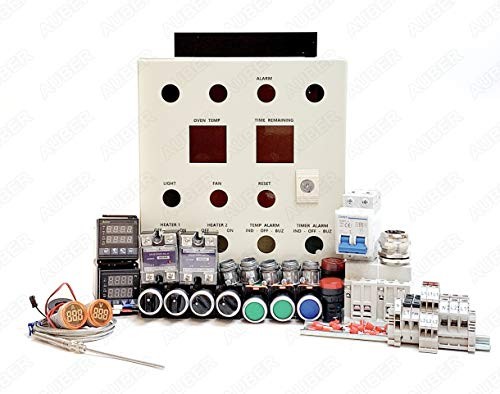

This kit includes each of the following:
12x10x8" Wall mount enclosure with silk screen label, complete precut and knockouts.
Dual-line display PID controller.
Two 40 A Solid State Relay and 60A heat sink.
General purpose timer.
Flashing Buzzer and alarm indicator.
Mini digital volt and amp meter for showing system power.
Two black 3-Position black selector switch for temp and timer alarm silence.
Two black 2-position selector switches for element control.
Blue illuminated push button for timer reset.
Green illuminated push button for light and fan control.
Oven temperature probe w/ mounting screw (both sensor and cable are rated for 900F).
1/2-inch EMT conduit fitting for all output connection.
Strain Relief Power Cord Connector for hard-wiring input power.
Side-mount breaker switch for overload protection.
DIN Rail Terminal Block Kit for power distribution.

The kit does not include:
Heating element.
Input power cord.
Wiring and wiring fittings.

Note:

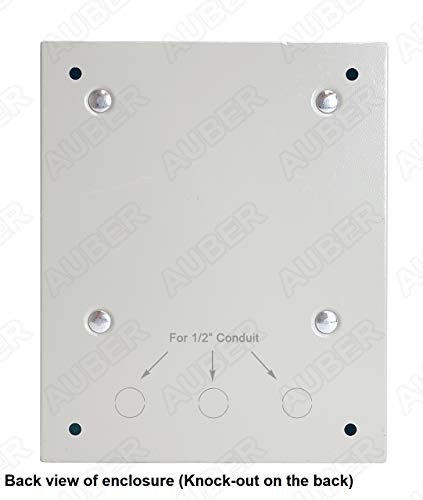

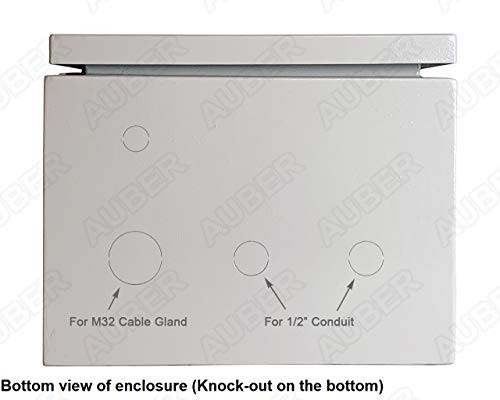

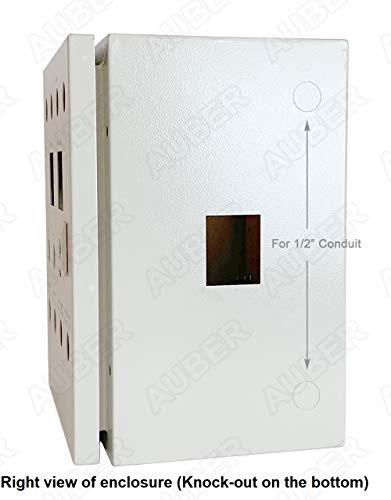

1. This kit includes an enclosure with complete precuts and knockouts for output connection.
2. The kit is designed for Nica 240V power line that requires four line power connections (L1, L2, Neutral and Ground). For the customers in other countries, please contact us: https://goo/fbnRDL

Warranty: 6 months.
Support line: 770-569-8420. 9-5 ET, M-F
